STEP 1
Clean area thoroughly with soap and water solution and wipe completely dry. Use enclosed adhesion promoter on spray-in bed liners (factory or aftermarket), textured surfaces, plastics, and difficult-to-bond surfaces. It is not required on clean, smooth painted vehicle surfaces. The adhesion promoter will create an instant bond so do not attempt to remove or reposition seal.

IMPORTANT: Wait until after each step is complete before applying very firm pressure (25 lbs.) to secure adhesive bond.
NOTE: Pictures shown are for the left side only.

STEP 2: ATTACHING TO SIDEWALLS

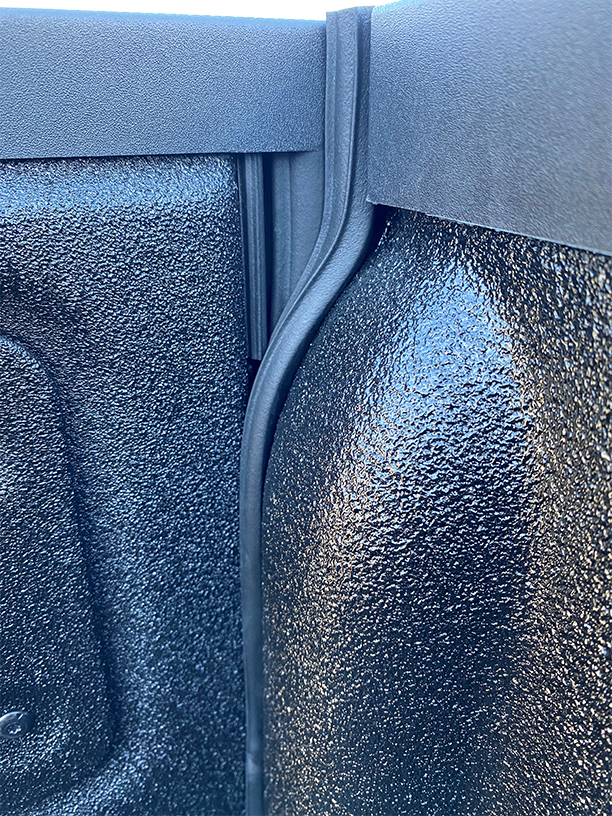

Start 1” (2.5cm) below truck bed floor and attach seal to the rear corner edge of the left sidewall extension (FIG 2A). When nearing top of sidewall, gradually rotate seal 90° counter clockwise so that bulb is facing inward and the taped side of seal is flush with the sidewall at the top (FIG 2B). Cut to fit. Apply light pressure to adhesive. Duplicate for right sidewall.

STEP 3: ATTACHING 2.75" (6.98cm) PIECE TO UPPER SIDEWALLS
Cut a 2.75" (6.98cm) piece from the Large Tailgate Seal and attach just below top of bedrail (FIG 3). Flush to the seal on the sidewall extension, bulb side facing inwards. Do not attach adhesive to seal. Apply light pressure to adhesive. Check that the top of the tailgate does not interfere with the top of seal by lifting up tailgate (but not closing) and inspecting from the outside rear. Adjust seal as necessary. Duplicate for right sidewall.

STEP 4: ATTACHING 3" (7.62cm) PIECE TO SIDE OF TAILGATE
Cut a 3" (7.62cm) piece from the Large Tailgate Seal and attach to the side of tailgate near the top, bulb side facing down (FIG 4). Apply light pressure. Duplicate for right side.

Alternate View

STEP 6: ATTACHING TO TAILGATE GAP (6)
One minute help video available at TailgateSeal.com

One minute help video available at TailgateSeal.com. Note: More often bulb side is down for Colorado and Canyon.

To evaluate the best positioning for the tailgate gap, cut a 1” (2.5cm) test piece and align the top of bulb with the truck bed floor. Stand to the side of truck and raise tailgate until the bulb makes contact with tailgate. If the bulb rolls downwards just before closing tailgate, so that you can see the tape, then seal has rolled and compressed too much. This can cause added stress to the adhesive and possible separation.

If compressing too much, then invert 1” piece so that bulb side is down. Raise tailgate again and make sure no light is visible through the 1” piece. Adjust 1” piece higher or lower in the gap, as needed, to block the light. After determining if bulb should be up or down and how high or low, remove 1” piece and pick up one end of the continuous seal. Start at either end, peel back liner and flush to tailgate seal on the sidewall.

Attach in sections, apply light pressure to adhesive should you need to reposition. Flush to seal on the other sidewall and cut to fit. Apply very, very firm pressure to secure adhesive bond.

Alternate View

STEP 7

After Tailgate Seal is in place, apply very firm pressure to secure the entire adhesive bond. Leave tailgate open for 60 minutes. If the air tempreture will fall below 50°F (10°C) within the next 24 hours or, if applying to a surface other than paint, such as plastic or a spray on bed liner, then leave tailgate open for 24 hours.
